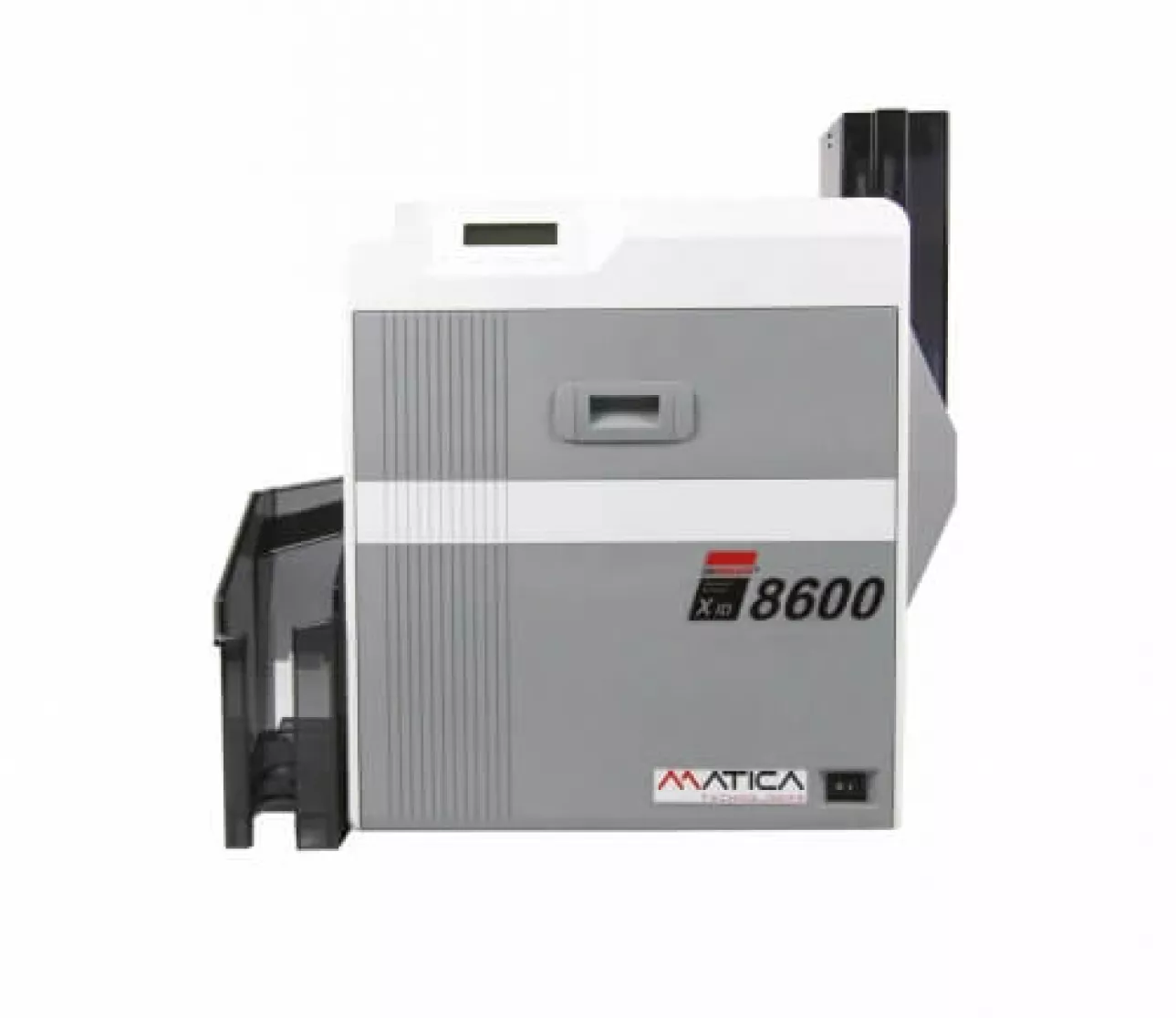

Matica XID8600 Duplex Card Printer
Over-the-Edge-Printing
Card Printer Matica XID8600 Duplex at a low Price
Card printer Matica XID8600 Duplex for plastic cards at a low price ✔ Personal advice ✔ Over-the-edge printing ✔ 600 dpi resolution ✔ Fast delivery ✔ Incl. flipper module ✔ Incl. network connection ✔ 120 plastic cards colourful / h ✔
The Matica XID8600 represents an absolute high-end product. With 600 dpi, it offers an incredible resolution, extremely sharp and brilliant images and can even print the finest lines and fonts without any problems. It was developed especially for extremely secure ID cards, ID cards or access control. A flipper module is factory installed, so you can print both sides of the card in one process. Tip: For best printing results, use the special Re-Transfer plastic cards.
The Matica XID8600 represents an absolute high-end product. With 600 dpi, it offers an incredible resolution, extremely sharp and brilliant images and can even print the finest lines and fonts without any problems. It was developed especially for extremely secure ID cards, ID cards or access control. A flipper module is factory installed, so you can print both sides of the card in one process. Tip: For best printing results, use the special Re-Transfer plastic cards.
If you have any questions about Matica card printers, please email us at info@kartenstudio.com
Convenience: The Matica XID8600 Duplex gives you direct access to the two large card slots. On the right is the tray for the blank cards, on the left is the output tray into which the finished printed plastic cards fall. This design eliminates the need for cumbersome filling of the cards at the back of the printer and allows you to operate everything from the front. The LCD display provides information about the status of the printer. By using the buttons below the display and the status monitor, various settings can be changed. The Matica XID8600 Duplex can be integrated into your working environment via USB or Ethernet connection. By the integrated flipper module both card sides can be printed and finished in one step.
Printing technology: Re-transfer printers do not print directly on the cards, but first on a foil and then apply it to the cards under high heat (approx. 200 degrees), the card can be printed completely over-the-edge and unevenness, such as RFID cards, can be printed without any problems and without any loss of quality. The Matica XID8600 Duplex can print on a variety of card materials, especially the durable cards, such as ABS, PET, polycarbonate. Due to the 600 dpi resolution you get the best quality currently available and can create cards that are close to offset quality.
Info: We recommend installing a Bend Remedy for single-sided printing. Due to the high heat when printing the cards, they come out of the printer bent. A Bend Remedy can mechanically bend the cards almost straight again. The Bend Remedy can be installed in the printer directly from the factory. Please contact us if required.
Info: We recommend installing a Bend Remedy for single-sided printing. Due to the high heat when printing the cards, they come out of the printer bent. A Bend Remedy can mechanically bend the cards almost straight again. The Bend Remedy can be installed in the printer directly from the factory. Please contact us if required.
Flexible: The card printer Matica XID8600 Duplex can be extended according to your individual needs. Additional modules like magnetic stripe encoder, IC contact and SmartCard encoder can be added optionally. A single-sided and double-sided laminator is also offered.
Security: To increase the durability and security of your cards, the printer can be upgraded with the laminator ILM-LS for single-sided lamination and the laminator ILM-DS for double-sided lamination. The laminates protect the cards from UV light and abrasion. To increase security, Matica offers laminates with integrated security signs. This makes your ID cards almost forgery-proof. As a further special feature, a UV ribbon is offered, with which you can print additional fluorescent elements on the card. A detailed product description can be found under the tab "Data sheet".
Short description card printer Matica XID8600
✔ Perfect for high-resolution ID cards and access controls
✔ Absolutely over-the-edge printing
✔ Incl. flipper module
✔ Unique print image with 600 dpi
✔ Card feeder up to 200 plastic cards
✔ Printing microfonts and fine lines
✔ Very easy to use
✔ High resolution colorful print YMCKO
✔ LCD display
✔ USB 2.0 compatible, Ethernet & Windows
✔ Approximately 120 map pages per hour
✔ All standard cards PVC ISO CR80 with a thickness of 0.76 mm to 1.02 mm
✔ No special print programs necessary
✔ We also offer this card printer with a starter set ▶
✔ Absolutely over-the-edge printing
✔ Incl. flipper module
✔ Unique print image with 600 dpi
✔ Card feeder up to 200 plastic cards
✔ Printing microfonts and fine lines
✔ Very easy to use
✔ High resolution colorful print YMCKO
✔ LCD display
✔ USB 2.0 compatible, Ethernet & Windows
✔ Approximately 120 map pages per hour
✔ All standard cards PVC ISO CR80 with a thickness of 0.76 mm to 1.02 mm
✔ No special print programs necessary
✔ We also offer this card printer with a starter set ▶
Re-transfer card printing with Matixa XID8600 Duplex
This type of card printing does not print directly on the plastic card. The motif is first printed on a foil and then transferred to the card with approx. 200 degrees heat. The decisive advantages of this printing method are the completely over-the-edge card printing, a considerably better print quality and the better printing of uneven plastic cards such as RFID cards.
You have never printed plastic cards before? No problem - this is how it works...
The Matica Edisecure XID8600 Duplex card printer is connected to your computer like any other printer, using a USB cable or network cable. Printing on plastic cards works basically the same as printing on paper. All you need to do is load the colour-matching ribbon (this is done simply by opening the cover). Approximately every 1000 prints you should clean the card printer with the special cleaning cards (takes about 2 minutes). You can start printing from any program (Word, Office etc.). You do not need any special software. The application is very easy. You can find an overview of all card printers here ►
Field of application...
The Matica XID8600 Duplex Card Printer is designed for high resolution, double-sided and completely over-the-edge printing on plastic cards. If you value razor sharp images in almost best offset quality, the Matica XID8600 Duplex is the right choice. Ideal for secure ID cards, access control, student IDs, student cards or loyalty cards as well as fine and thin lines, fonts and contours.
Order optional accessories for Matica XID8600 Duplex at the same time...
| Recommended Print Volume: | ✅✅✅⬜⬜ |
| Print Quality: | ✅✅✅✅✅ |
| Print Speed: | ✅✅⬜⬜⬜ |
| Support: | ✅✅✅✅✅ |
| Easy of Use: | ✅✅✅⬜⬜ |
Manufacturer number: PR000198
Information about card printers
Printing plastic cards is in principle just as easy as printing on paper. However, there are a few special features that you should consider and know before buying such a device:Do I need special knowledge?
No, you definitely do not need that. If you can connect and operate a normal paper printer, you will have no problems with card printers.How do I connect my printer?
Card printers are connected to the printer in the same way as conventional paper printers, using a USB cable or network cable. For plug-in printers, it is not even necessary to install a driver. For all other printers, the appropriate printer driver is installed either by means of the supplied CD, USB stick or as a download.Do I need special software?
No, you can print directly from all common programs such as Word, Corel Draw, Photoshop or Open Office. However, if you want to encode your plastic cards, whether magnetic stripes, RFID cards or chip cards, you need a special program and of course the corresponding encoding stations in the printer. For this purpose we recommend the software Cardpresso.How do I change a colour ribbon?
The manufacturers have made this as simple as possible. You only have to open the cover or the front flap of the printer, the old ribbon can be easily removed from the printer and a new one can be inserted just as easily. Re-transfer printers require 2 ribbons to be loaded in a certain way - but this is also very uncomplicated and done within 1 minute.Why are there special cleaning kits for card printers?
Over time, dust and particles settle in the printer. These are also often found on plastic cards. In order to obtain a consistently good print image and to guarantee a smooth card feed, cleaning should be carried out after approx. 1000 prints. The printers usually report this automatically as soon as a cleaning is due.How do I clean my card printer?
In most cases a special cleaning card is inserted into the printer to clean the mechanism and the rollers. This can be repeated several times with one and the same cleaning card until the printer is dust free and ready for use again. This takes just 2 minutes, but it protects your card printer and is important for warranty claims.Can I print on any card colour?
In principle, yes. However, the printing inks may appear differently on coloured plastic cards than desired. The card colour and the printing inks mix, so that a blue print on a green card, for example, suddenly appears brown-grey. A print in black, white, gold and silver is possible on all card colours and does not change the appearance and colour image.A colourful print as well as a print with re-transfer card printers is only perfectly possible on white plastic cards.
How does a thermal transfer printer work?
These are the all-rounders among the card printers (Authentys 300, Hiti CS200e, Evolis Primacy, Zebra ZC series etc.). Here, printing is done directly from the ribbon onto the plastic card using heat. There is a wide range of different, monochrome printing ribbons as well as ribbons for colourful printing.Advantages:
- Low acquisition costs
- Inexpensive monochrome ribbons
- Special colours like gold and silver
- Special ribbons such as scratch off or for a signature field (depending on manufacturer)
- Compact and space-saving printers
- Very easy to use
- Upgradeable with coding options and turning station (depending on manufacturer)
Disadvantage:
- No over-the-edge printing, even if the manufacturers call it that. About half a millimetre remains unprinted at the edge of the card.
- Image quality does not reach the re-transfer print
What is a re-transfer printer?
Re-transfer card printers are specially designed for an excellent, colourful print image (Dascom DC-7600, Evolis Avansia, Matica MC660, Fargo HDP6600 etc.). In contrast to the thermal transfer printers, the card is first printed on a special carrier foil, the so-called re-transfer film. This film is in turn applied to the cards with high heat. This enables brilliant printing results and over-the-edge card printing. This printing method is also particularly suitable for RFID cards, as the unevenness of the cards is not important here due to the integrated RFID transmitter.Advantages:
- Particularly good print quality, near offset print quality
- Resolution up to 600 dpi for finest lines and micro fonts
- Absolute over-the-edge printing
- Optional special lamination and security modules
- Upgradeable with various coding options and turning station
Disadvantage:
- Higher acquisition costs
- No single-colour printing ribbons
Which plastic cards can I use?
The plastic cards we offer in the standard size 85 x 54 mm and a thickness of 0.76 mm usually work with all card printers. However, we recommend our High Quality Cards for very good printing results and for all re-transfer card printers. The print image will be sharper and better with these cards. If you want to print another card format or thicker or thinner cards, this depends on the configuration of your printer.How fast do the machines print?
Here we differentiate between colour and monochrome printing. Of course this depends on the individual devices and your computer settings, but a guideline is as follows:Colour printing per card page: 30 - 60 seconds
Monochrome print per card side: 3-9 seconds
Which is the right printer for me?
We cannot answer this question in such a general way. It depends on your requirements and wishes regarding the printer and of course a little bit on the estimated budget. We would be happy to find out for you which printer models are ideal for your project - simply contact us by e-mail at info@kartenstudio.com or call us on +49 8094 - 66 899 85.- Data Sheet Matica XID8600 (311.45 KB)
